T12A02

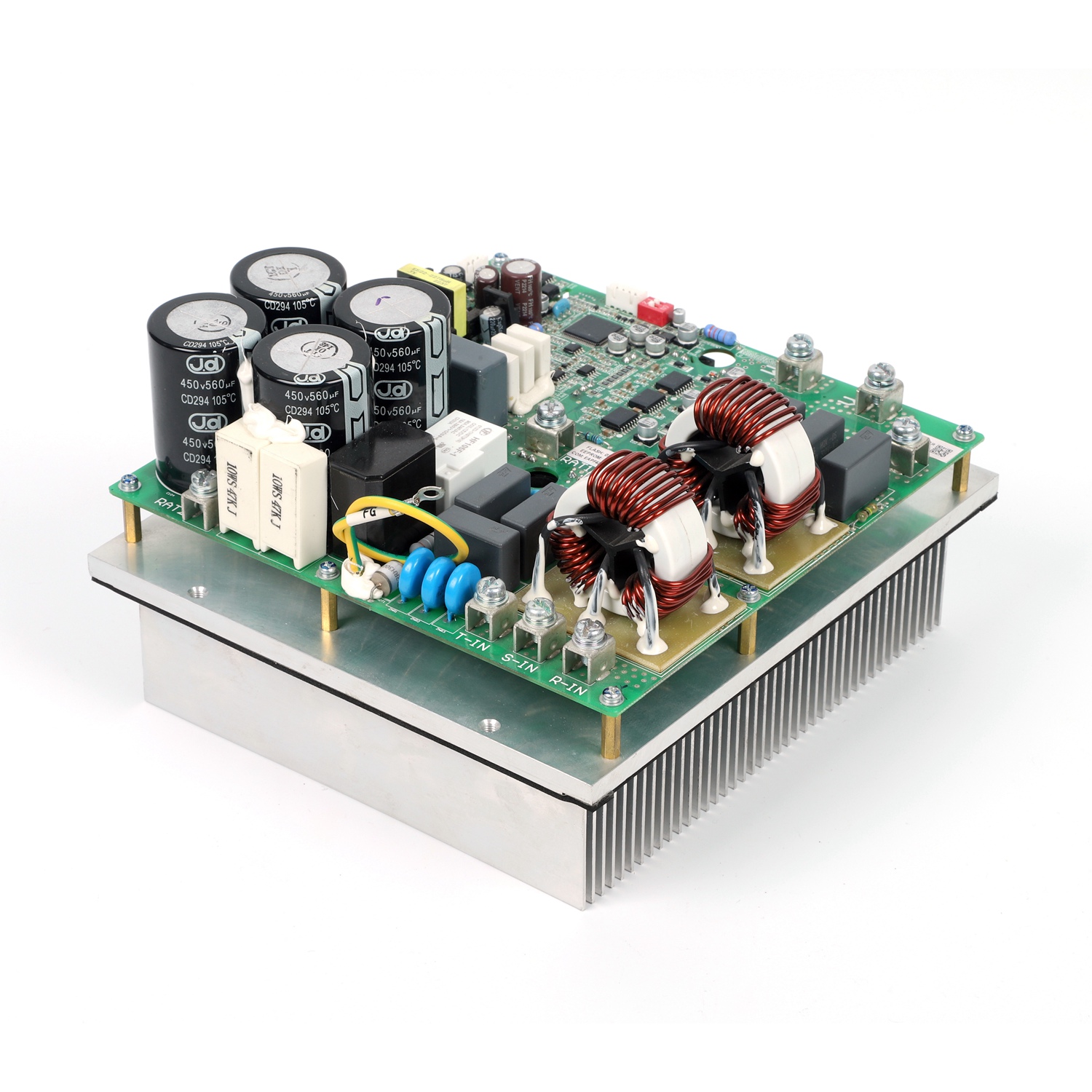

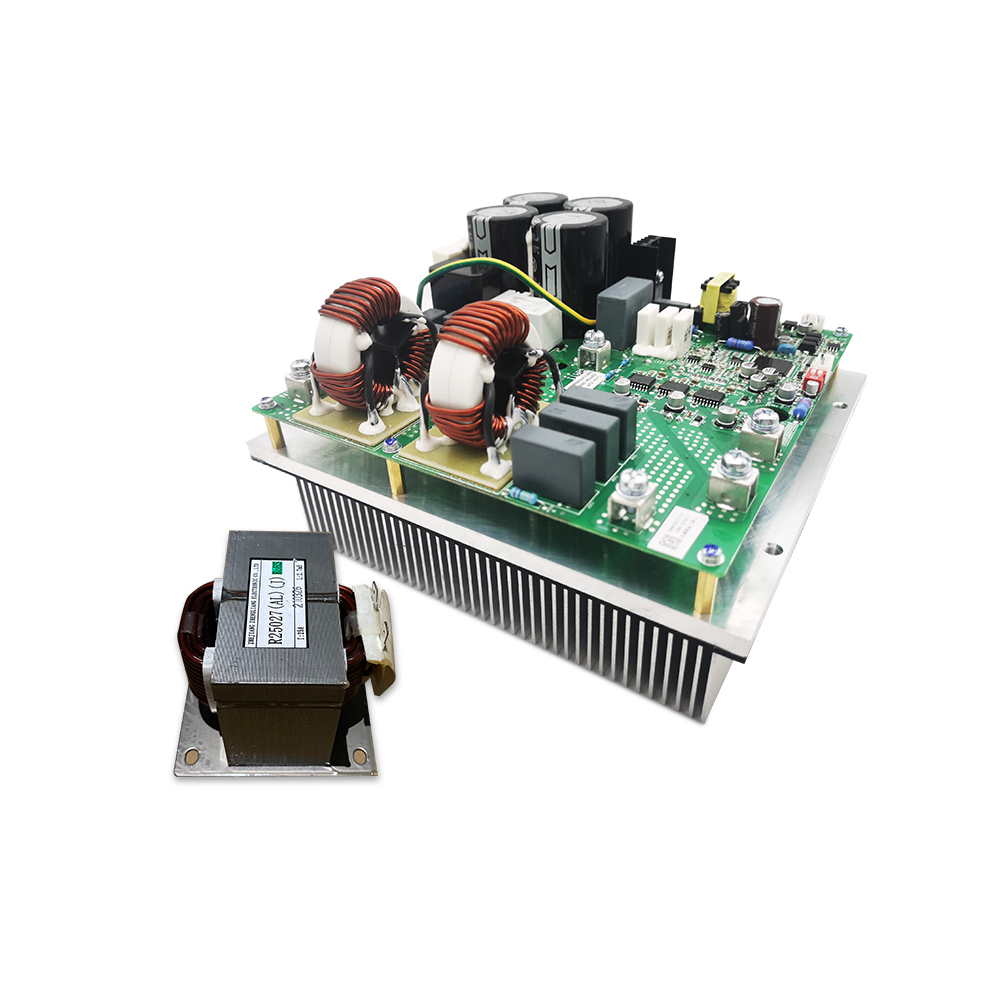

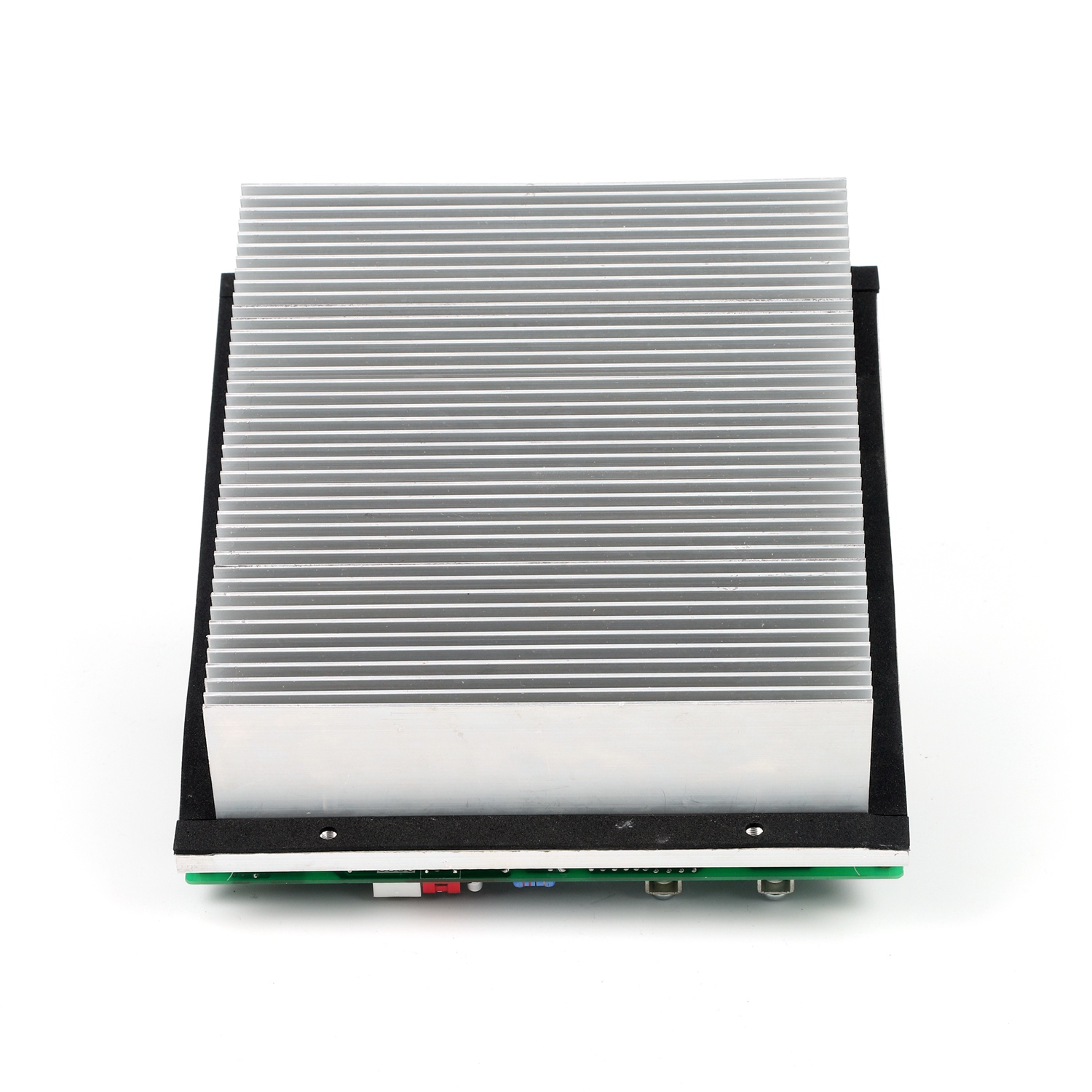

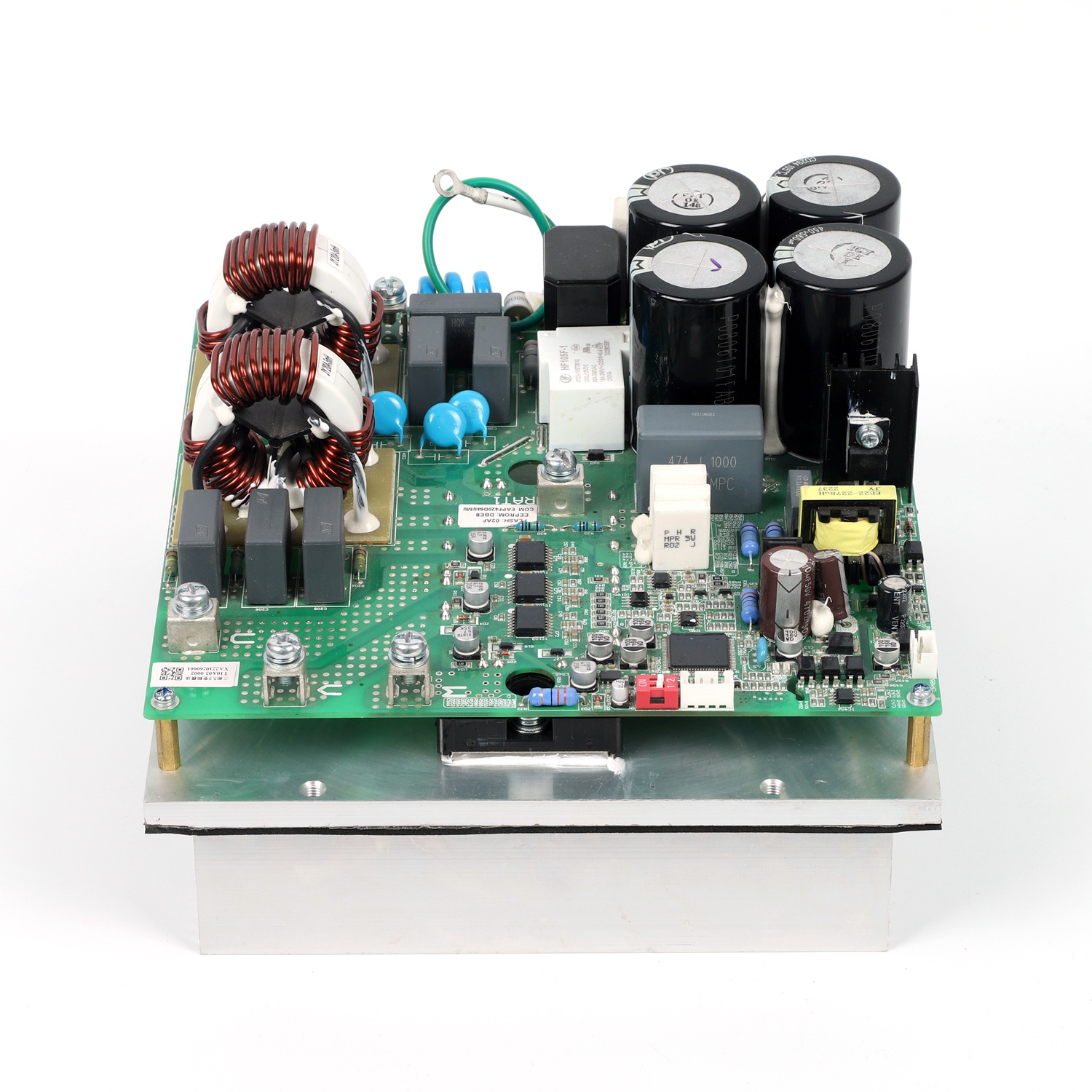

6.5kW 12A 3-Phase 380V DC Inverter Compressor Driver Board (180° Sinusoidal | Plug & Play)
StandardgeraetInverter Drivers
Designed for high-load commercial HVAC and heavy-duty refrigeration systems, this 6.5kW (12A) 3-phase DC inverter driver board ensures stable operation under demanding conditions. 100% Customized to Your Compressor: Simply provide your compressor's specification sheet, and our engineers will pre-configure and debug the software before delivery. Enjoy a hassle-free, plug-and-play installation with maximum compatibility.
Globale Garantie Technischer Expertensupport
Spezifikationen
Input maximum power6.5kW 380V AC
Input maximum current12A
Inverter frequency range20Hz-120Hz
Input voltageThree phase standard voltage 380 V 50 / 60 Hz, operable voltage 320-460 V
Carrier frequency5.0kHz (adjustable according to compressor noise)
PFCPF value (0.9)
CommunicationStandard RS485 isolation design, baud rate 1200bps
Other featuresCommunication failures, IPM temperature protection, Over current protection of compressor, Compressor drive protection, DC bus voltage protection, DC bus over voltage protection, AC over current protection, Over power protection of compressor
