T23A02

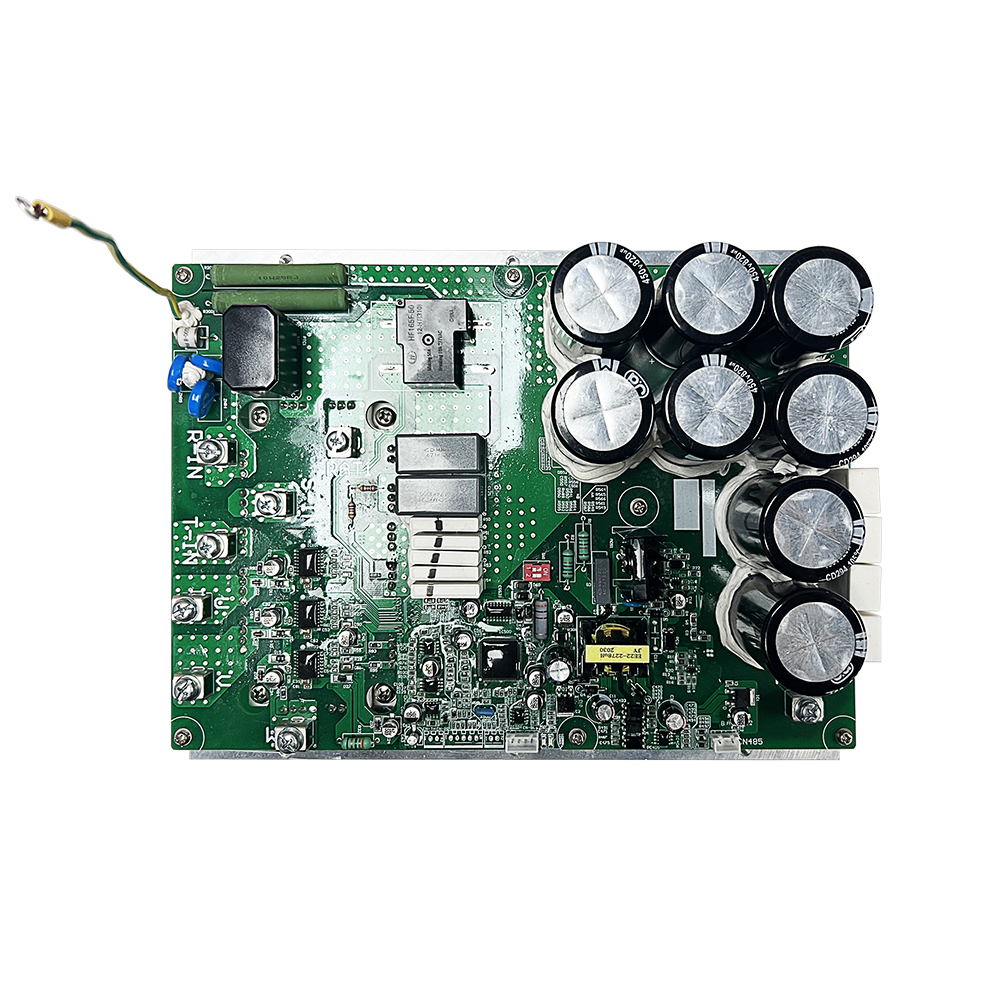

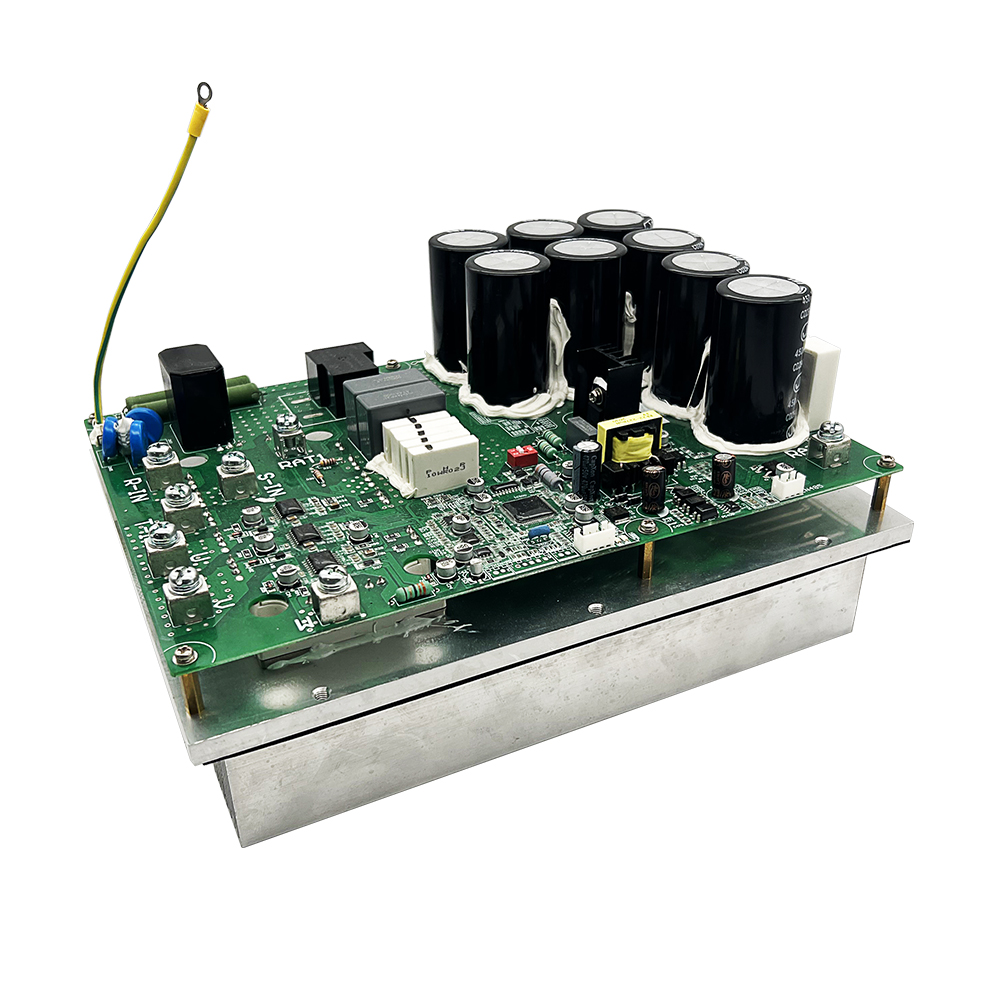

15kW 25A 3-Phase 380V DC Inverter Compressor Driver (Heavy Industrial Grade | Pre-Debugged)
Unidad estándarInverter Drivers
Built for the most demanding cooling applications—including large industrial chillers, data center HVAC, and heavy-duty cold storage. Delivering a massive 25A maximum current capacity, this 15kW 3-phase DC inverter driver board guarantees continuous, unstoppable performance. Zero R&D Risk: We completely eliminate your configuration headaches. Send us your compressor's datasheet, and our engineering team will pre-debug the software at our factory, ensuring absolute plug-and-play compatibility and zero risk of startup failures.
Garantía global Soporte técnico experto
Especificaciones
Input maximum power15kW 380V AC
Input maximum current25A
Inverter frequency range20Hz-120Hz
Input voltageThree phase standard voltage 380 V 50 / 60 Hz, operable voltage 320-460 V
Carrier frequency5.0kHz (adjustable according to compressor noise)
PFCPF value (0.9)
CommunicationStandard RS485 isolation design, baud rate 1200bps
Other featuresCommunication failures, IPM temperature protection, Over current protection of compressor, Compressor drive protection, DC bus voltage protection, DC bus over voltage protection, AC over current protection, Over power protection of compressor
