MK10

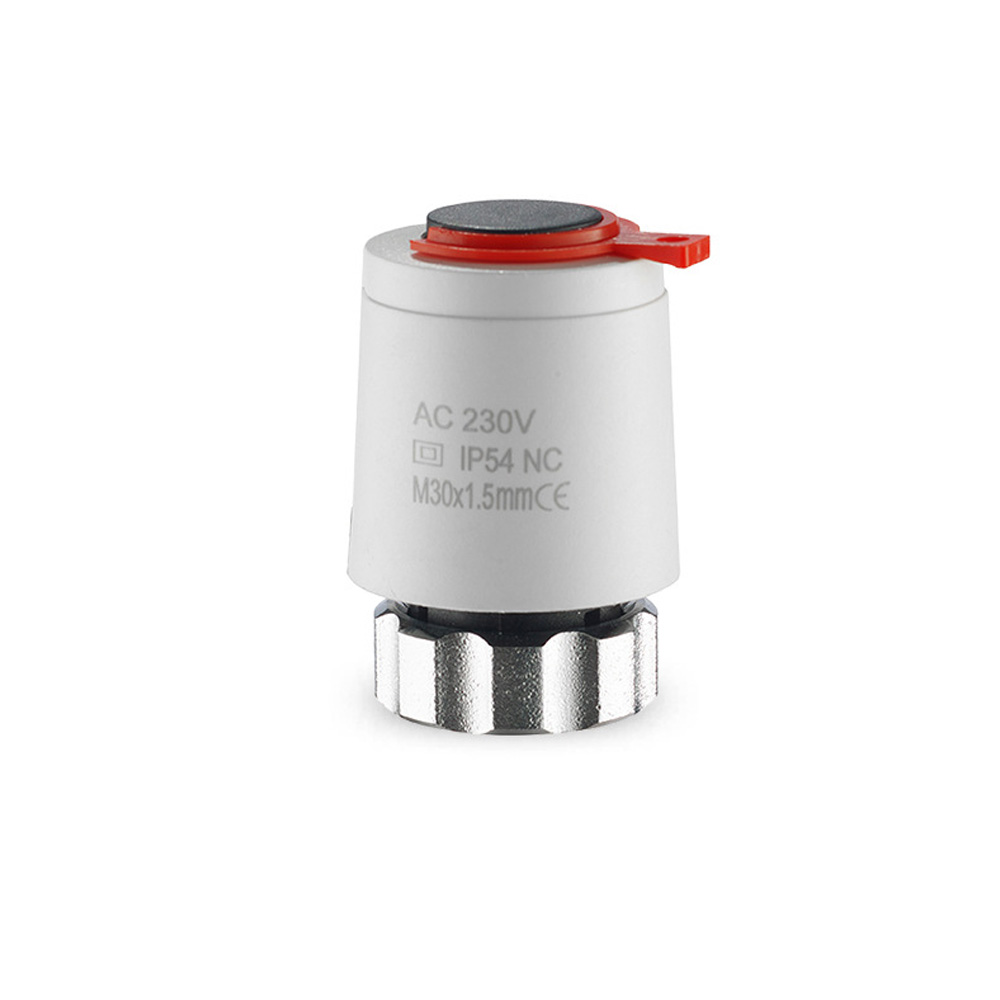

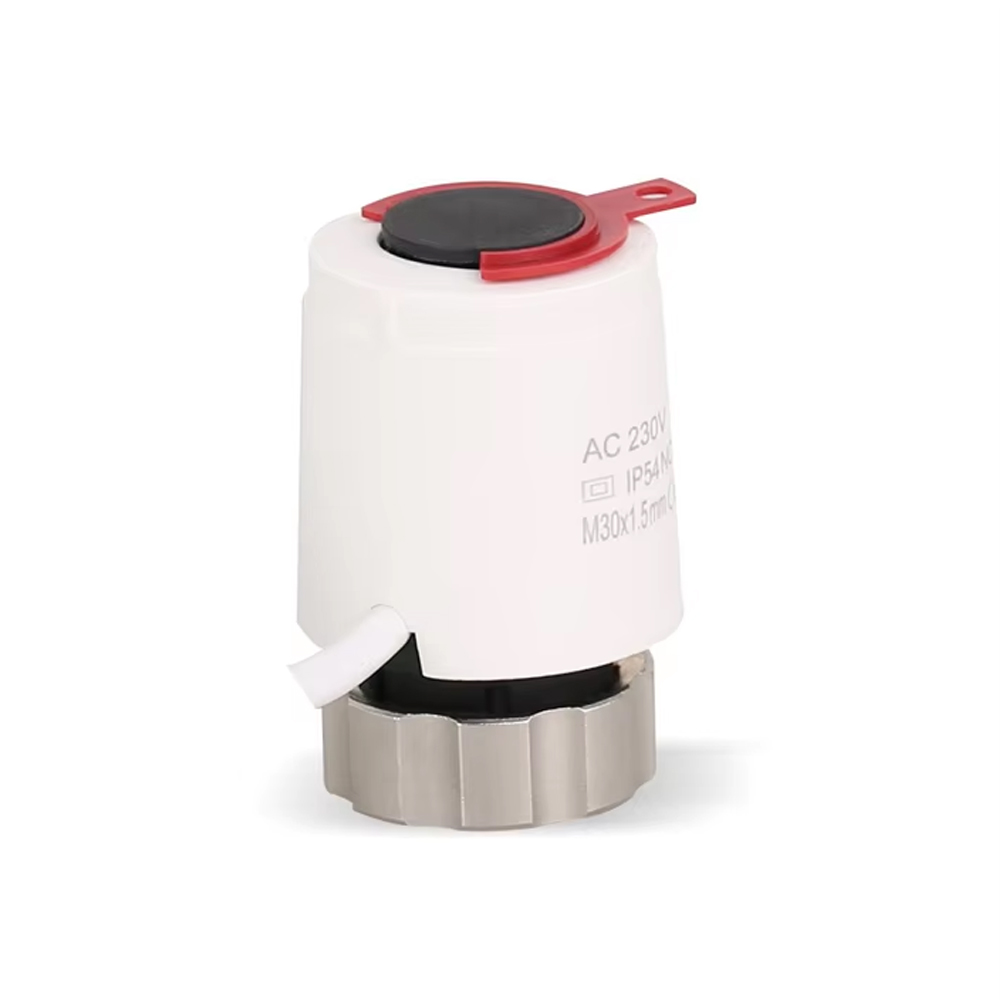

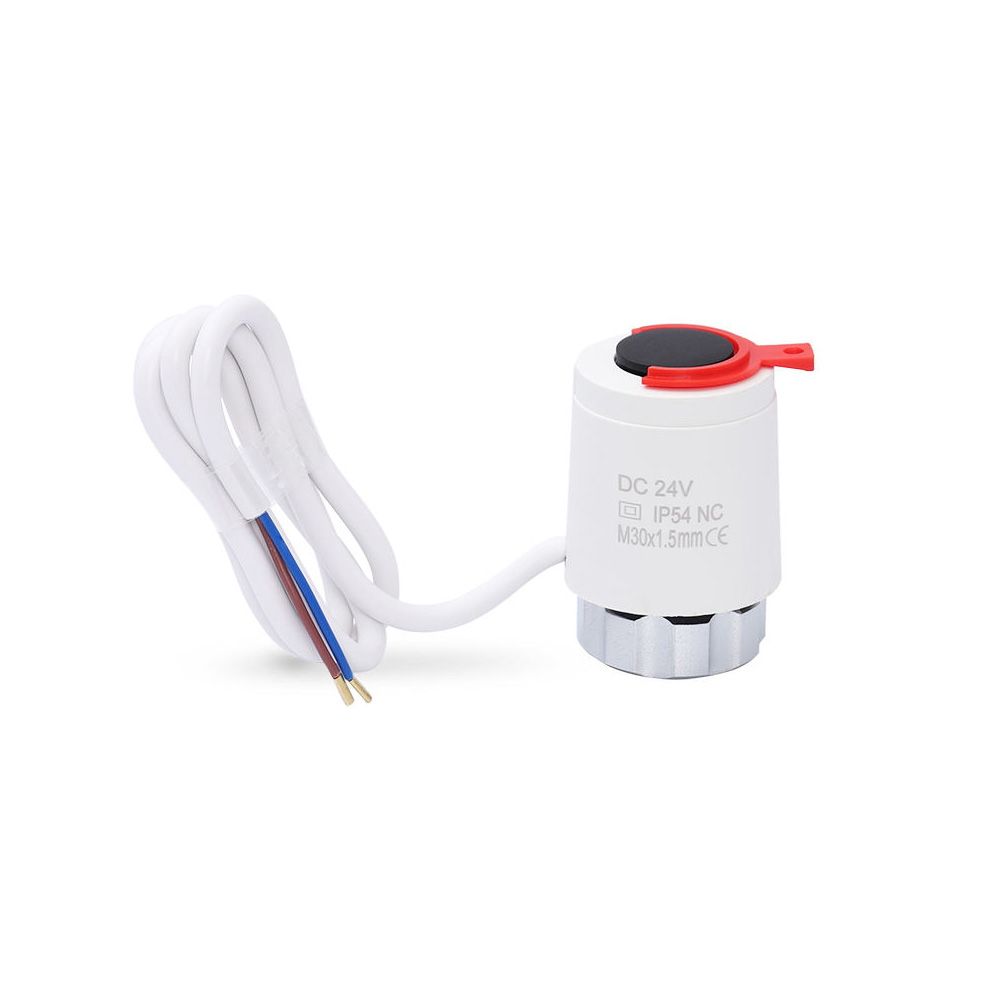

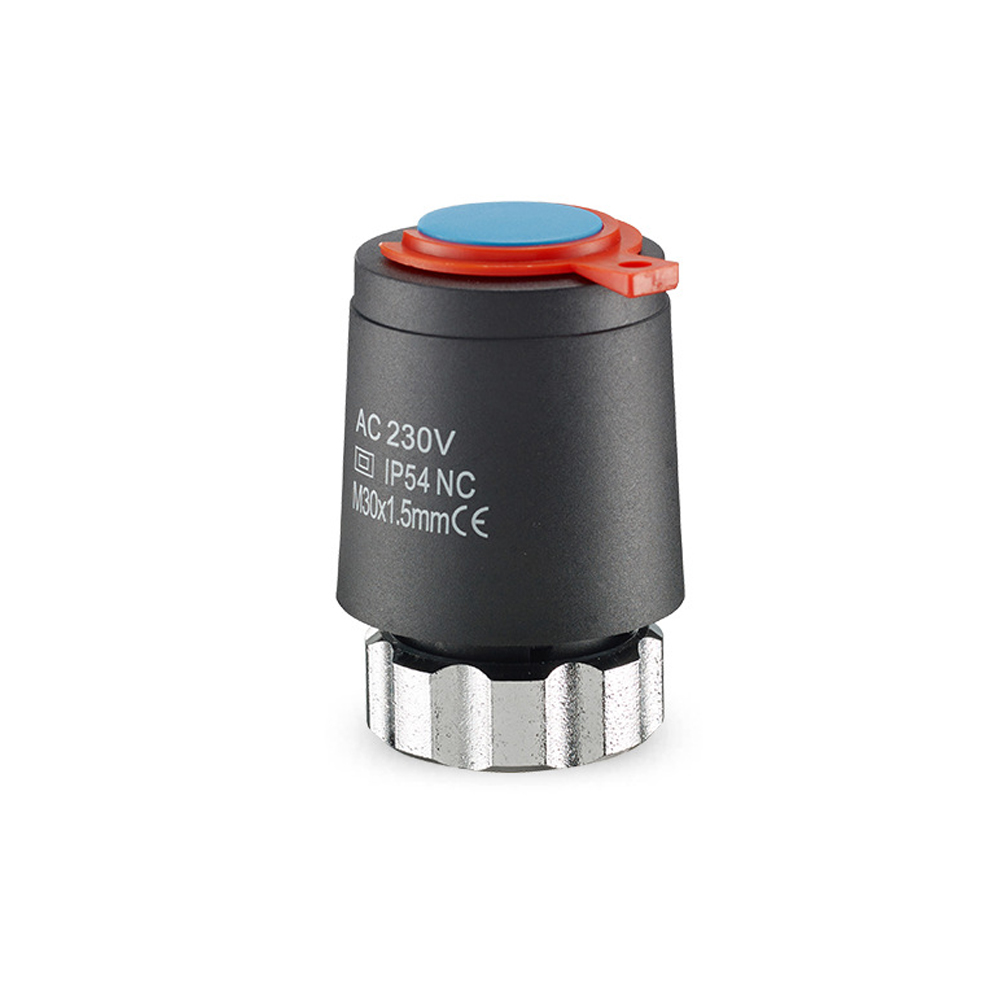

MK10 24V Thermal Actuator Normally Closed (NC) M30x1.5
Unidad estándarActuator
The MK10 reliable 24V normally closed (NC) thermal actuator is designed for underfloor heating manifolds and HVAC systems. Features a standard M30x1.5 connection, visual valve status indication, and low 3W power consumption for energy-efficient control.
Chico Assistant
Iniciar Chico Assistant
Live
Garantía global Soporte técnico experto
Especificaciones
Power Source24VAC, 110-230VAC
Housing MaterialPA66+30%GF, Reinforced fflame retardant nylon
Maximum stroke4.0±0.5mm
ProtectionIP45-Class II
Working Temperature-5℃~60℃
power consumption3W
TypeNO, NC
Connection SizeM30×1.5mm
Force110N
Running Time3-5min
Cable Length800mm
