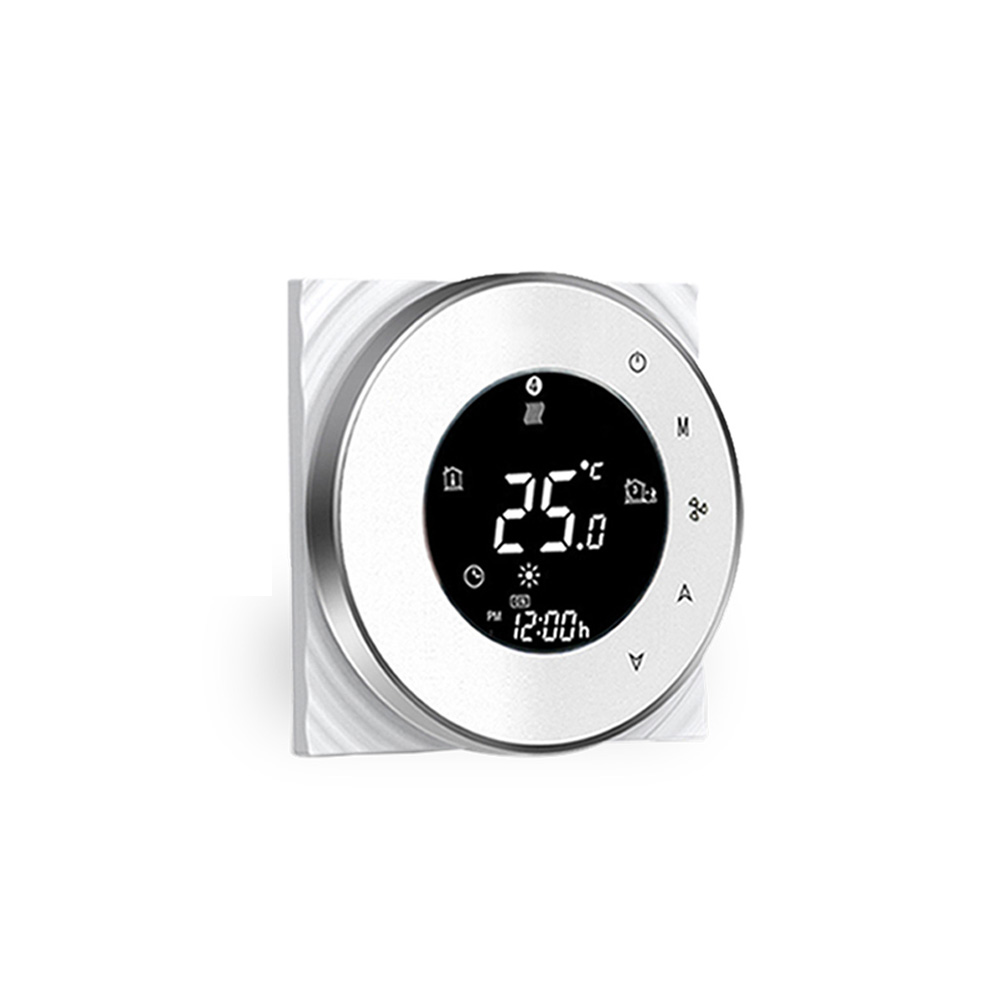

CCST3001 white circular fan coil unit thermostat front view

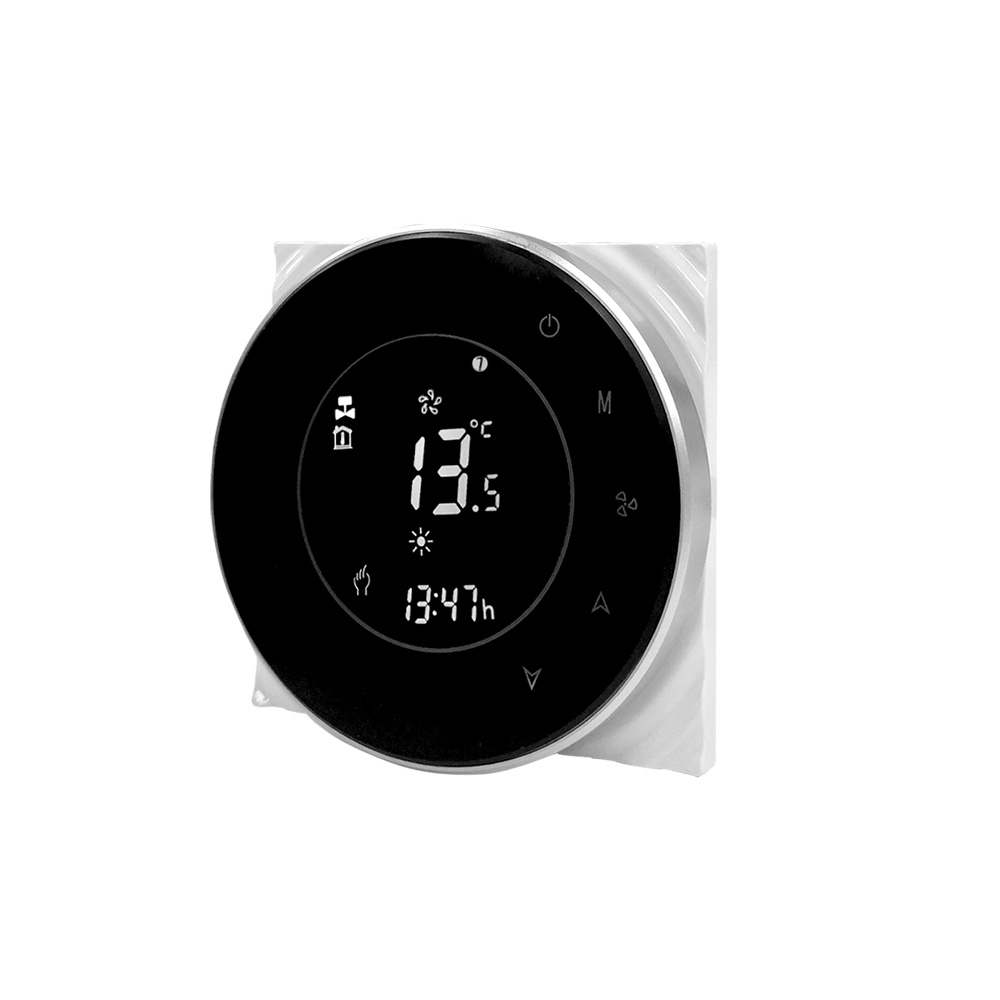

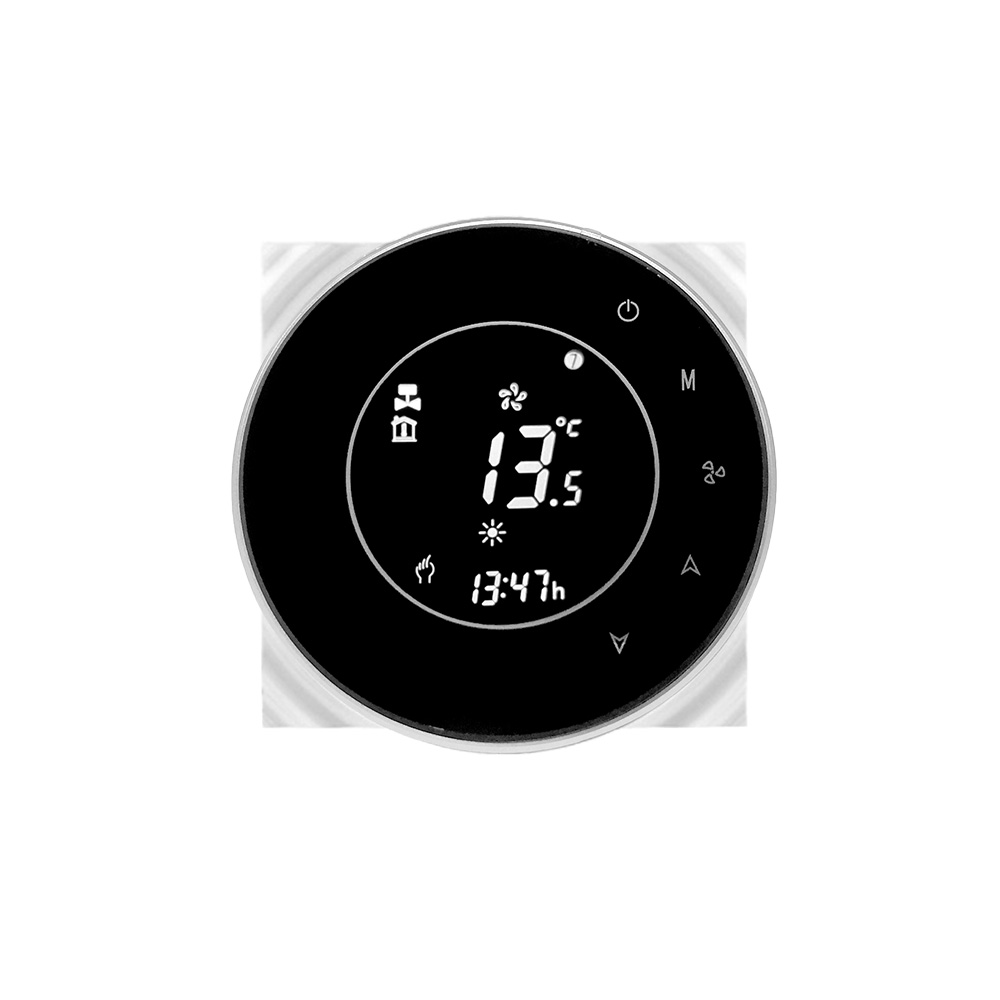

CCST3001 black circular smart fan coil thermostat front view

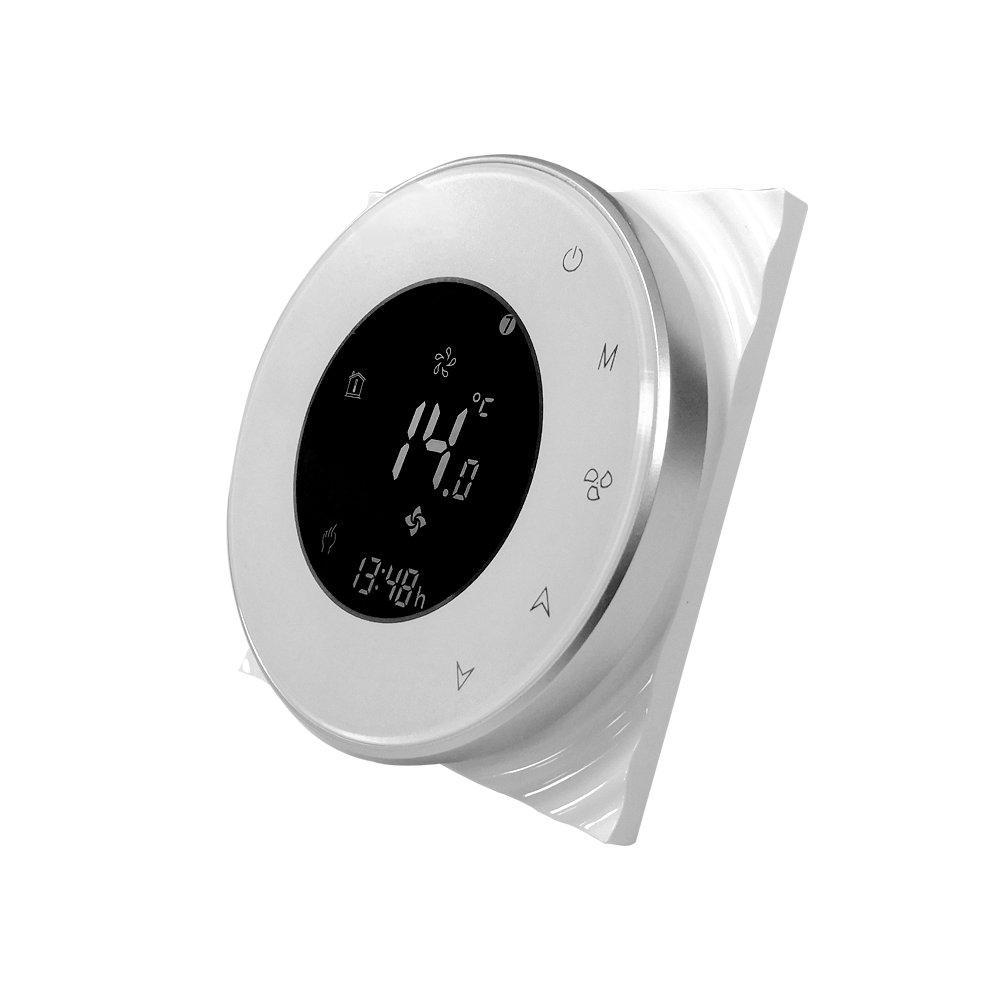

CCST3001 circular fan coil thermostat angled perspective view

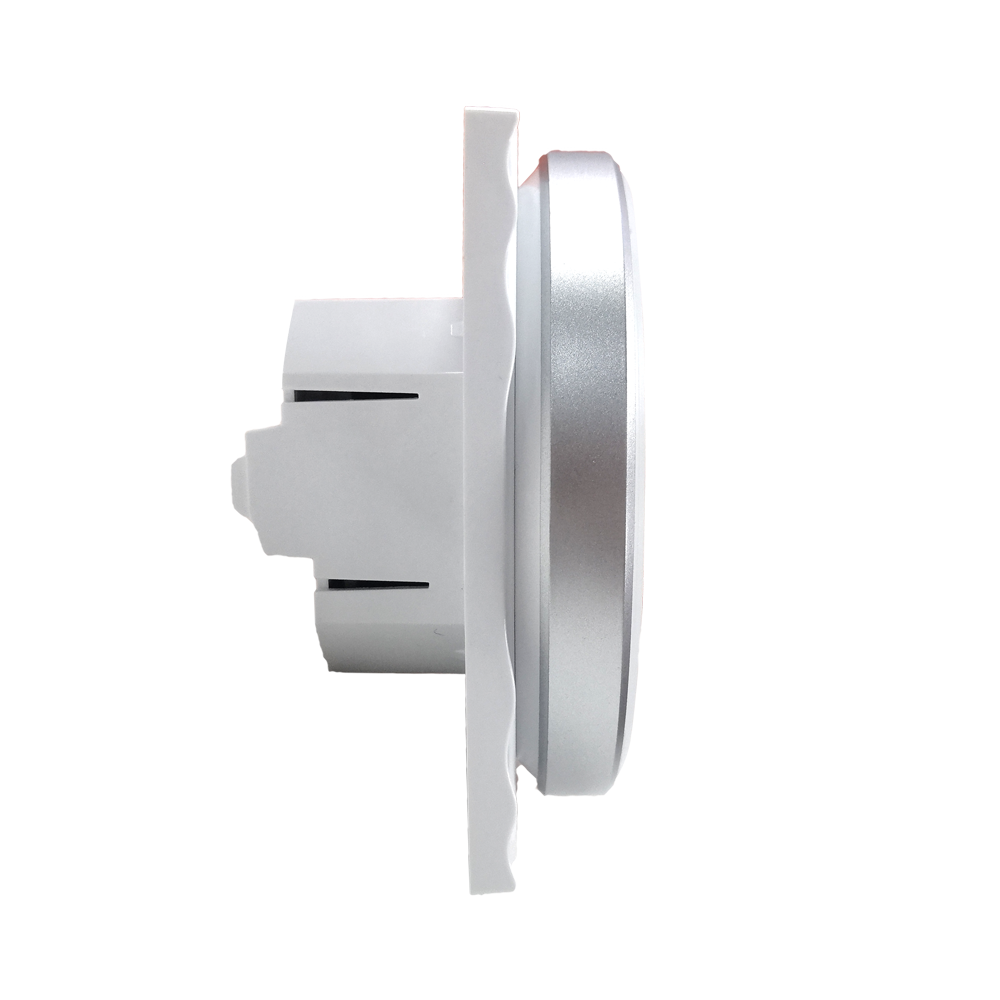

CCST3001 smart thermostat ultra-slim side profile view

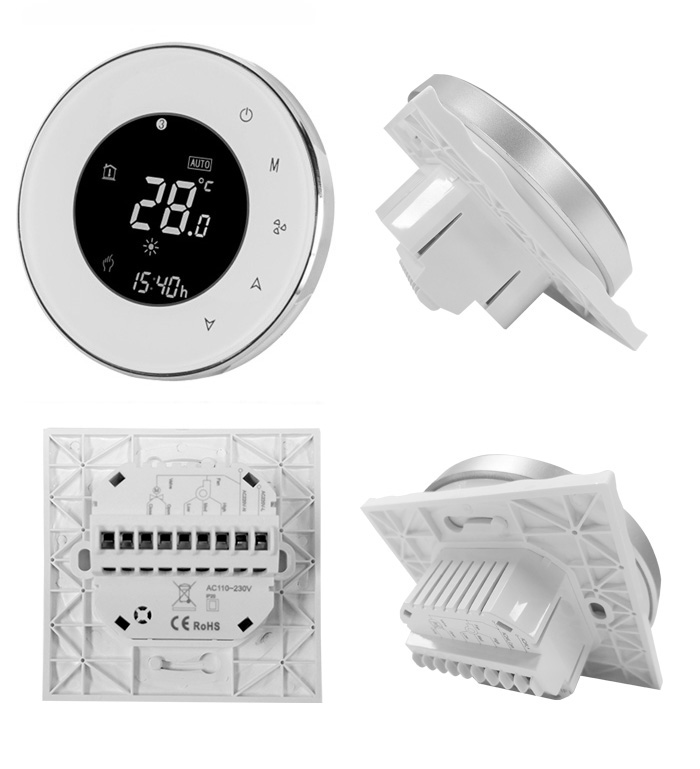

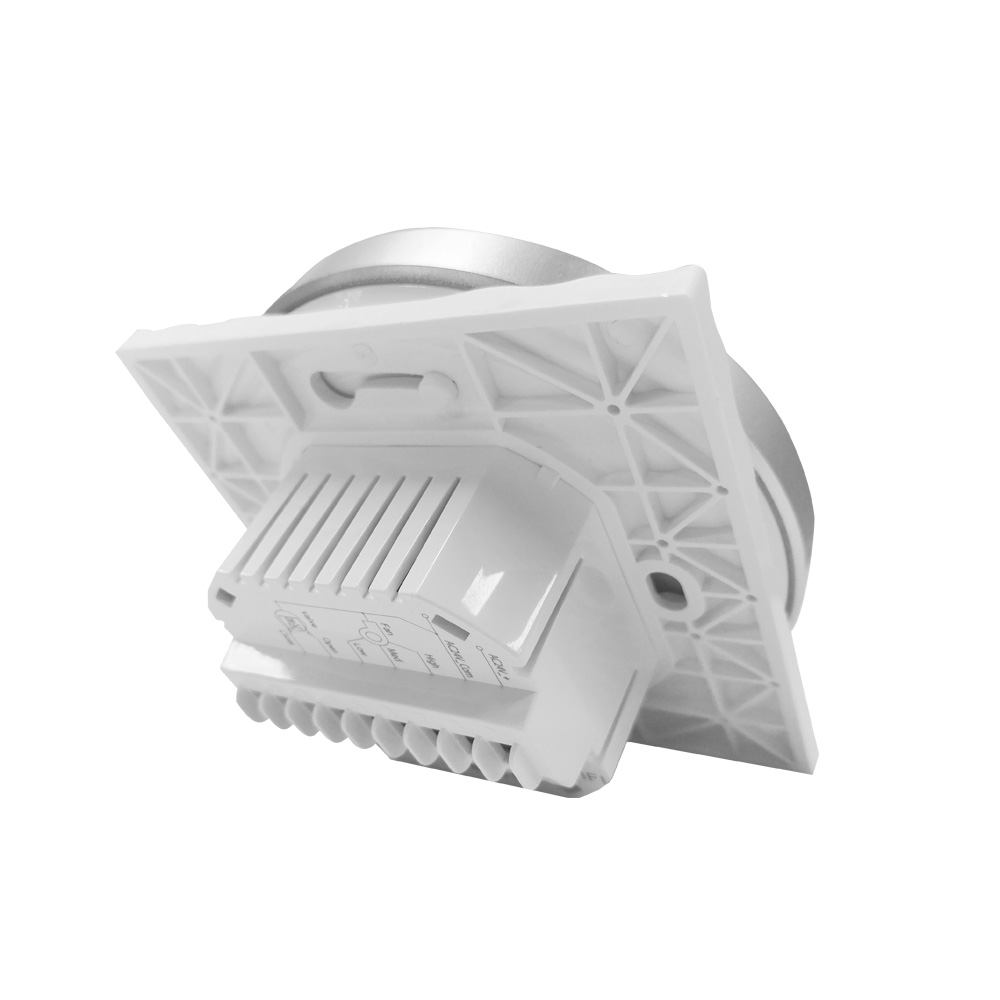

CCST3001 thermostat back base and wiring terminal view
CCST3001 white circular fan coil unit thermostat front view
CCST3001 black circular smart fan coil thermostat front view
CCST3001 circular fan coil thermostat angled perspective view
CCST3001 smart thermostat ultra-slim side profile view
CCST3001 thermostat back base and wiring terminal view
CCST3001

CCST3001 Fan Coil Thermostat with Round Display

Standard UnitFan Coil System

The CCST3001 is a Fan Coil Thermostat with Round Display, designed for 2-pipe and 4-pipe HVAC systems. It features 5+1+1 weekly scheduling, three-speed fan control, and optional WiFi connectivity for smart temperature management. Compatible with 86×86mm square and European 60mm round mounting boxes, it offers optional valve control and RS485 Modbus configurations for HVAC manufacturers and OEM/ODM projects.

Chico Assistant

Start Chico Assistant
Global Warranty Expert Tech Support

Specifications

Power Source95-230VAC
Fan Type3 fan speed
Current LoadFan: 5A (Resistive) / Valve: 3A (Resistive)
Control Type2/4-Pipe FCU (On/Off valve or 0-10V Modulating valve)
Accuracy±0.5°C
Room temperature setting range5 ~ 35°C (customizable)
Screen TypeVA LCD display
ConnectivityWiFi (2.4G), Modbus RS485
Smart LinkageAmazon Alexa, Google Assistance, Yandex Alice
Smart Scheduling5+1+1 day Programmable Schedule Mode
Housing MaterialPC+ABS Anti-flammable
MountingFlush-Mount (Fits 86mm Square & 60mm European Round Boxes)
Dimensions86 ×86 × 50mm
Other FeatureOptional external sensors, ECO energy-saving mode, power failure memory
