The Brain of High-Efficiency Pool Heat Pumps: Integrated Inverter & Control System.
Solucoes personalizadasInverter Heat Pump Controllers
Boost pool heat pumps with our integrated inverter PCBA. Features EEV, RS485, and Wi-Fi. Modular UI (TFT/LCD/LED) fits any market. High-efficiency & reliable.
Garantia global Suporte tecnico especializado
Especificacoes
Control TypeInverter(Frequency Speed)
Power supply220±10%(VAC)
Re-range8～40 ℃
ModeCooling, Heating, Auto
Temperature control Accuracy±1 Celsius
OutputCompressor, Fan motor, 4-way valve, Cycle water pump, Electronic heater, ···ect
Simulation sensorInlet water temperature sensor, Climate temperature sensor, Coil temperature sensor, Outlet water temperature sensor, Evaporator tank temperature sensor, Suction temperature sensor, Discharge temperature sensor
Dry contact input signalLow pressure switch, High pressure switch, Water flow switch
Mounting size267×200×135.5mm

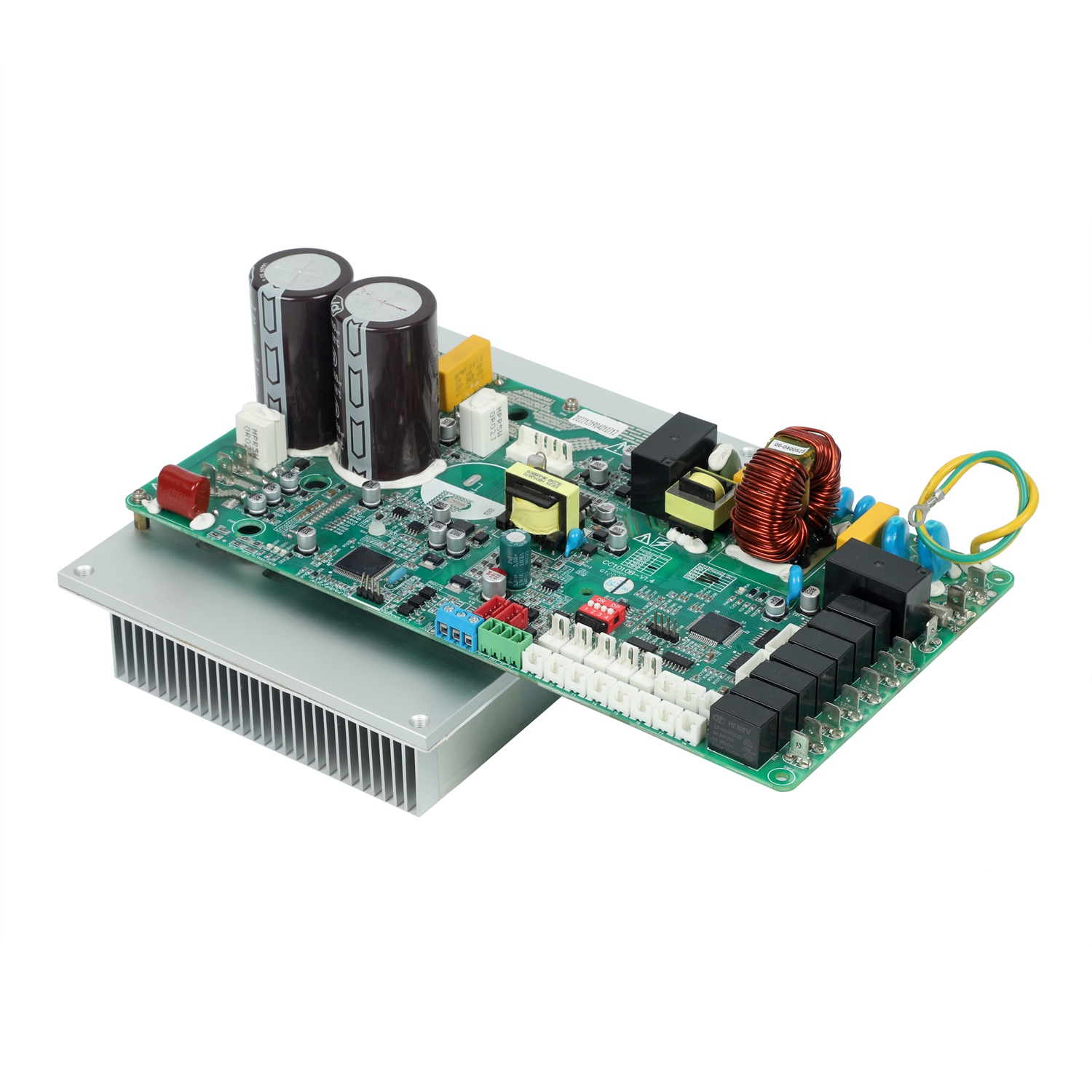

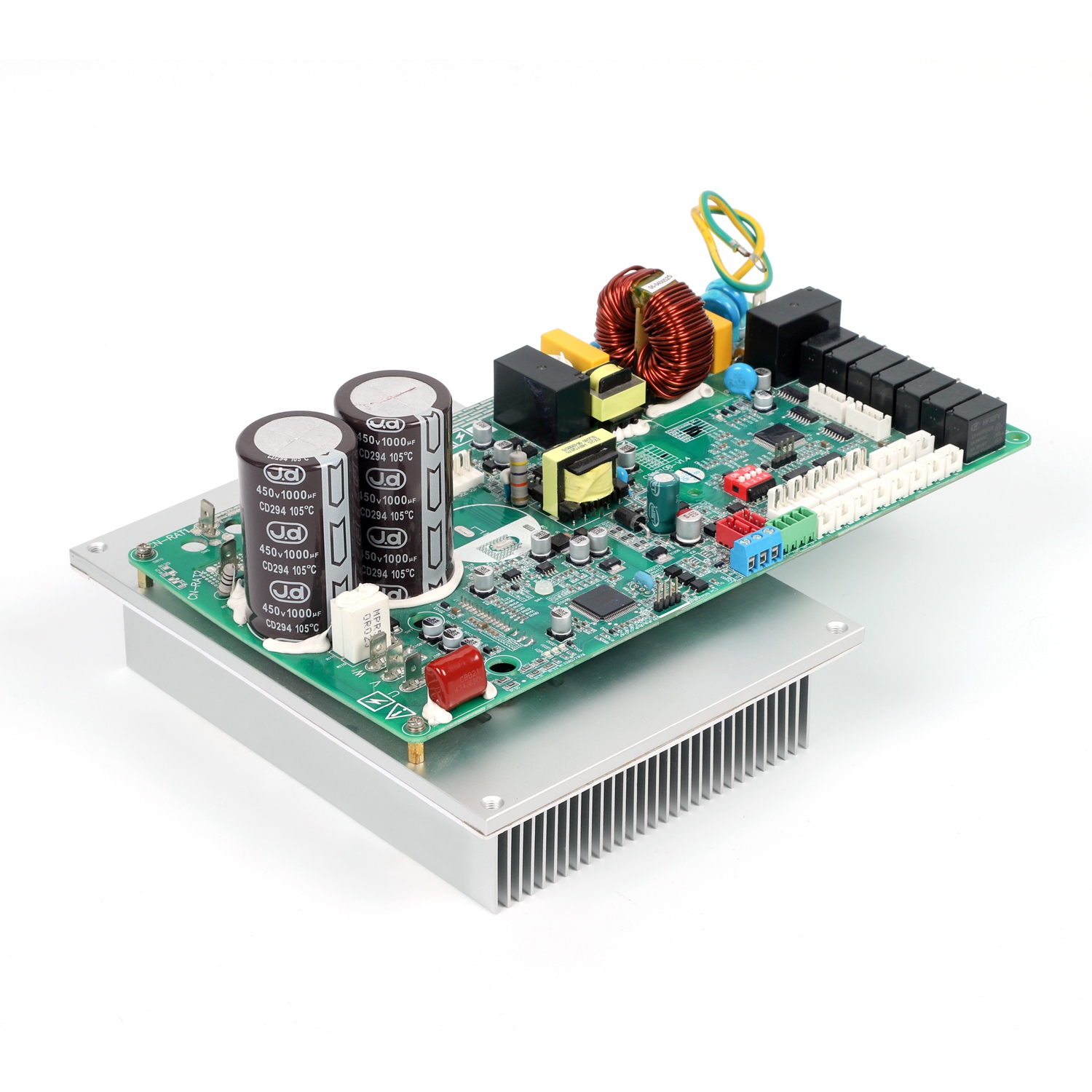

Product listConnection wires (1), Display (1), Main board and inverter driver all in one (1), Reactor(1), Temp.sensors(7)
Other featuresData memory when power is off, With EEV function, 24 hour cycle Timing ON/OFF function, With overload protection, Communication failures
