CCCH002

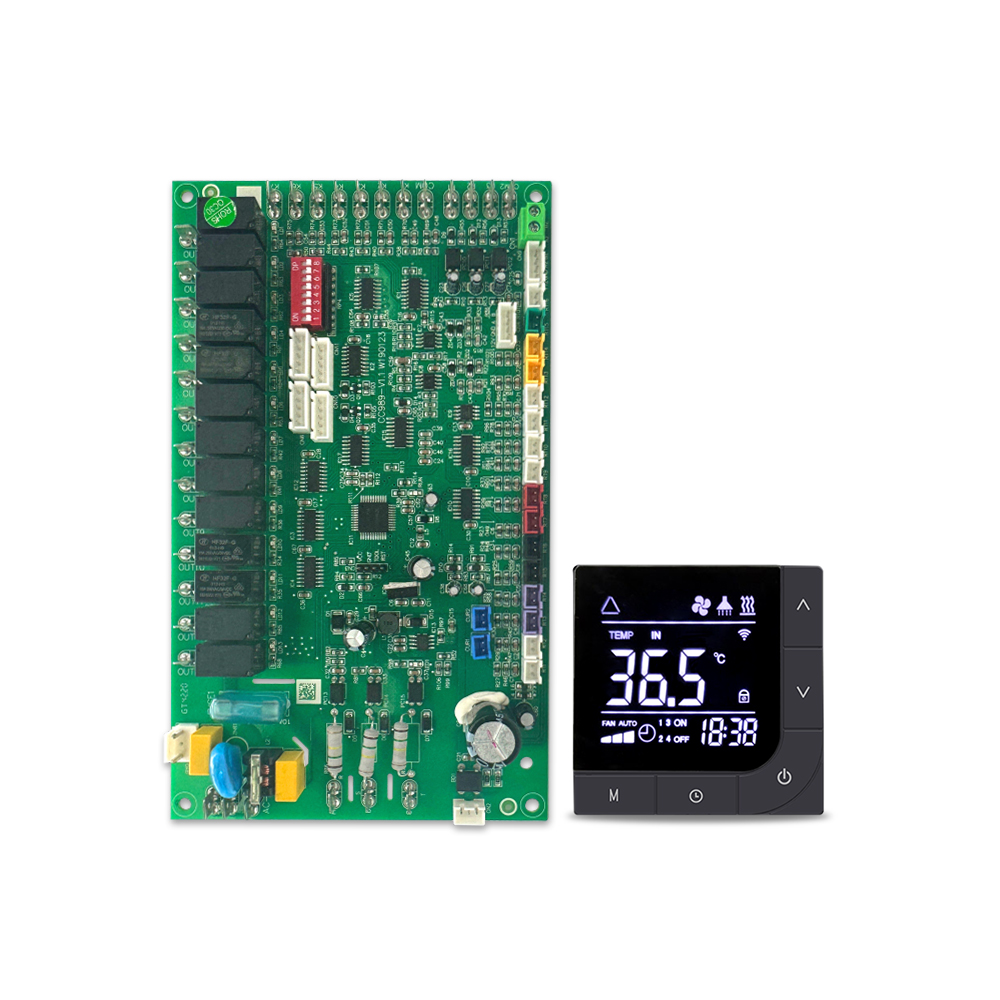

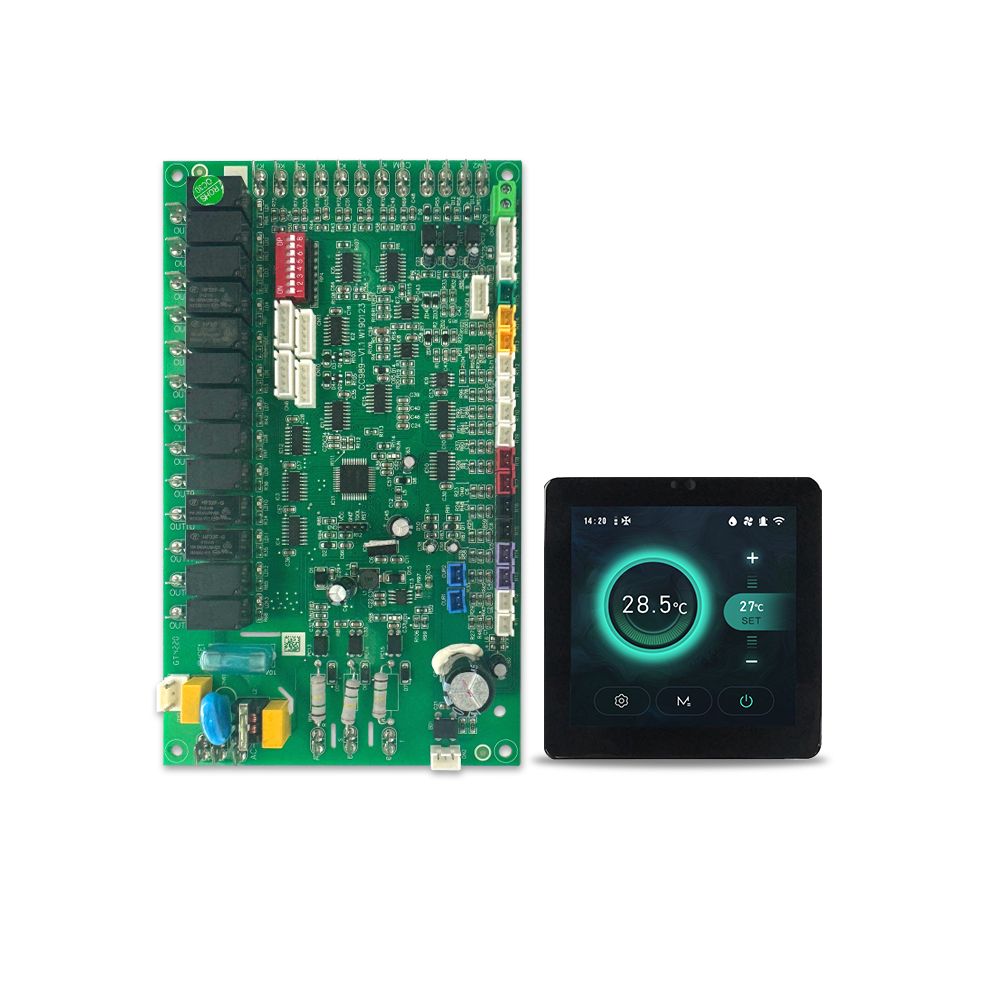

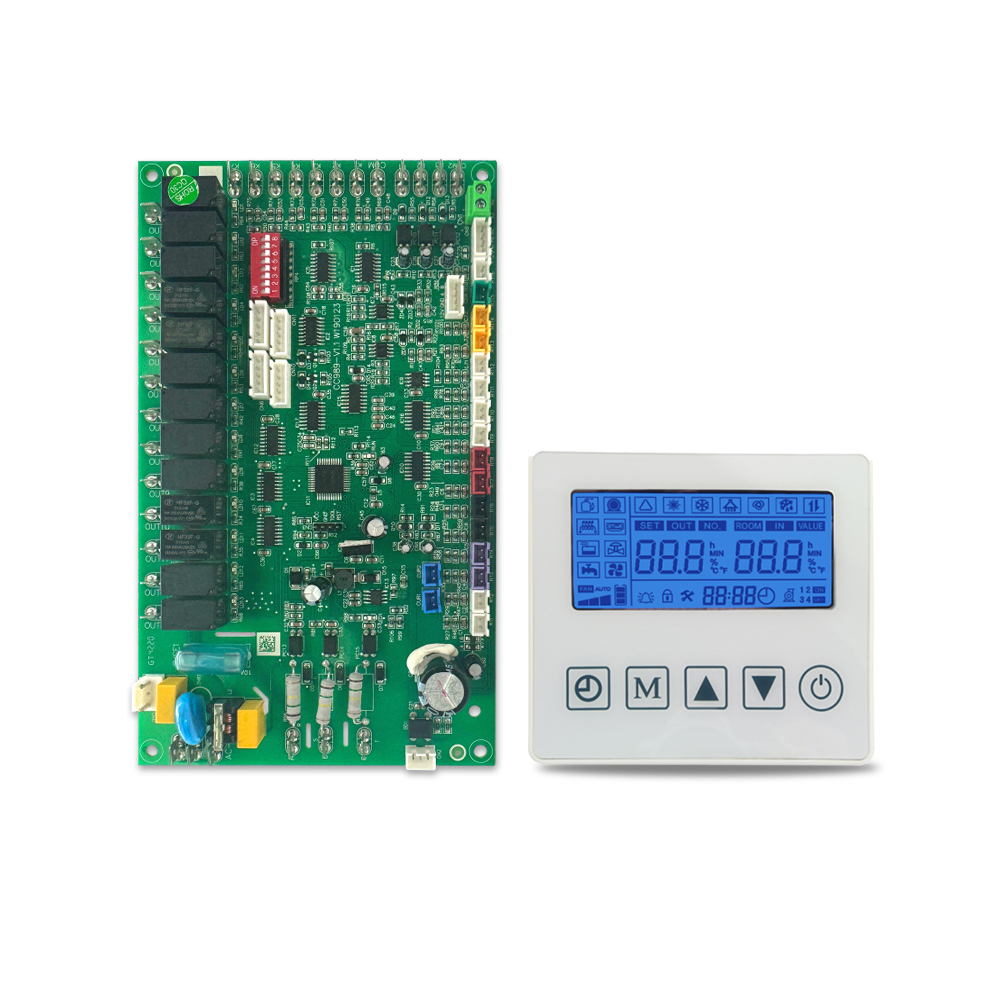

Smart EVI Controller for Fixed-Speed Heat Pumps & Chillers (Built-in EEV Driver)
Solucoes personalizadasChiller Controllers
Intelligent controller for Fixed Speed (On/Off) EVI Chillers & Heat Pumps. Features built-in EEV driver, 380V phase protection, and Wi-Fi/Modbus connectivity. Supports OTA remote updates and cascade control.
Garantia global Suporte tecnico especializado
Especificacoes
Control TypeOn/Off (Fixed Speed)
Power supply380 or 220±10%(VAC)
Re-range10～55 ℃
Temperature control Accuracy±1 Celsius
ModeCooling, Heating, De-icing
OutputCompressor, Fan motor, 4-way valve, Cycle water pump, ···ect
Simulation sensorInlet water temperature sensor, Climate temperature sensor, Coil temperature sensor, Outlet water temperature sensor, Water tank temperature sensor, Suction temperature sensor, Discharge temperature sensor
Dry contact input signalLow pressure switch, High pressure switch, Water flow switch, Air conditioning demand switch, Emergency switch
Mounting size211×125×25mm
Product listConnection wires (1), Current detectors (2), Display (1), Main board(1), Transfomer(1), Temp.sensors(18)
Other featuresData memory when power is off, With EEV function, 24 hour cycle Timing ON/OFF function, Modbus and OTA supported, Heating, cooling, heating&cooling and hot water only are optional, Two compressor control
