CCHW001
The Ultimate Command Center for Commercial Heat Pumps
Unidade padraoON/OFF Heat Pump Controllers
Dual-System Redundancy, 3-in-1 Climate Control, and Infinite Scalability for Large-Scale Projects.
Chico Assistant
Iniciar Chico Assistant
Live
Garantia global Suporte tecnico especializado
Especificacoes
Power supply50/60Hz, 220±10%(VAC), 380 or 220±10%(VAC)
Control TypeOn/Off (Fixed Speed)
Re-range8～60 ℃
Temperature control Accuracy±1 Celsius
ModeCooling, Heating, Hot water, De-icing
OutputCompressor, Fan motor, 4-way valve, Cycle water pump, Electronic heater, Element heater, ···ect
Simulation sensorInlet water temperature sensor, Climate temperature sensor, Coil temperature sensor, Outlet water temperature sensor, Water tank temperature sensor, Outlet temperature sensor, Return water tempeature sensor, Suction temperature sensor, Discharge temperature sensor
Dry contact input signalLow pressure switch, High pressure switch, Water flow switch, Air conditioning demand switch, Emergency switch, ···etc
Mounting size198×120×25mm

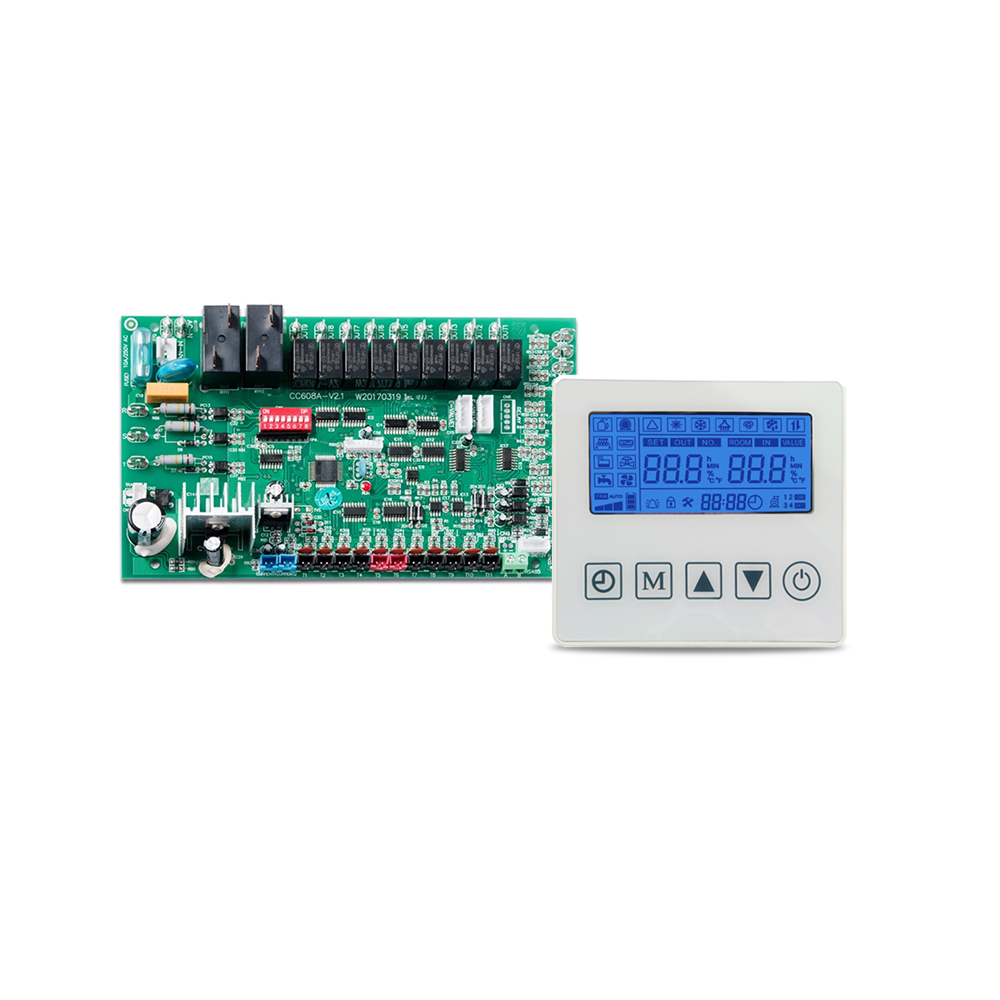

Product listConnection wires (1), Current detectors (2), Display (1), LCD display (1), Main board(1), Temp.sensors(11), Transfomer(1)
Other featuresData memory when power is off, With EEV function, 24 hour cycle Timing ON/OFF function, With WIFI function, Heating, cooling, hot water are optional, One or Two compressor control are optional
