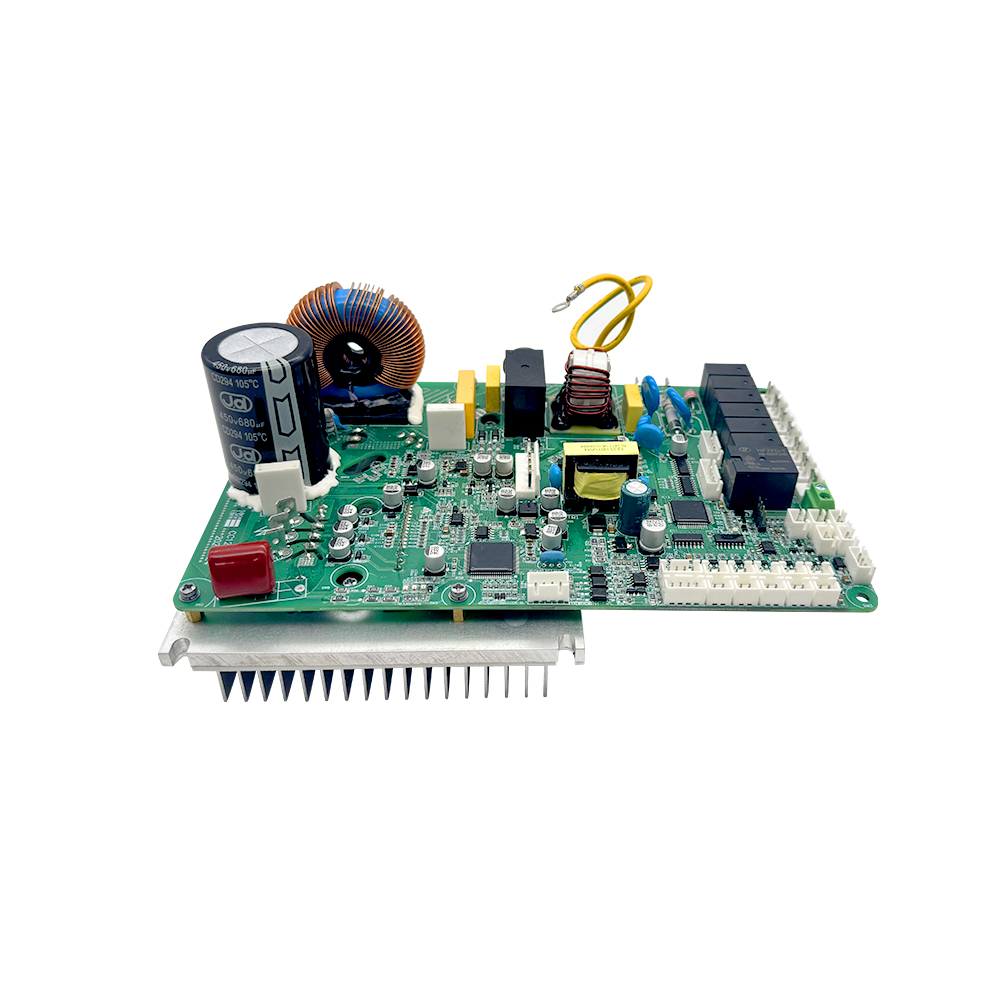

CCIB201
Advanced Inverter Control System for High-Efficiency Ice Bath Chillers
Solucoes personalizadasIce Bath Controllers
Elevate your ice bath chillers with our Inverter-driven control system. Featuring variable frequency technology, energy-efficient EEV control, Tuya IoT, and sleek TFT/LCD interfaces.
Garantia global Suporte tecnico especializado
Especificacoes
Control TypeInverter(Frequency Speed)
Power supply220±10%(VAC)
Re-range3～40 ℃s （37℉~104℉）
Temperature control Accuracy±1 Celsius
ModeCooling, Heating
OutputCompressor, Fan motor, 4-way valve, Cycle water pump, ···ect
Simulation sensorInlet water temperature sensor, Climate temperature sensor, Coil temperature sensor, Outlet water temperature sensor, Water tank temperature sensor, Suction temperature sensor, Discharge temperature sensor
Dry contact input signalLow pressure switch, High pressure switch, Water flow switch, ···etc
Mounting size215×143×70mm (heat-sink size 155*125*34mm)
Product listConnection wires (1), Display (1), Main board(1), Temp.sensors(7)
Other featuresOne compressor control, Data memory when power is off, With EEV function, 24 hour cycle Timing ON/OFF function, With WIFI function
