CCCH001

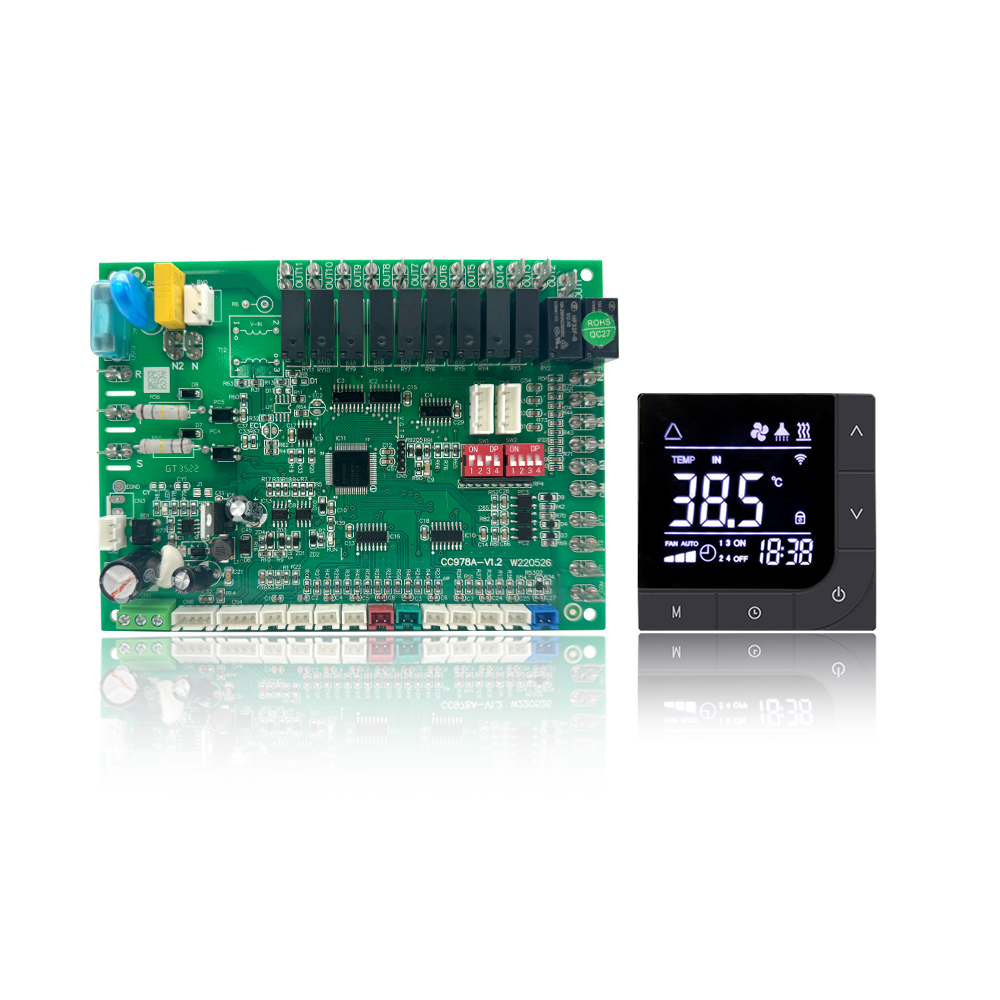

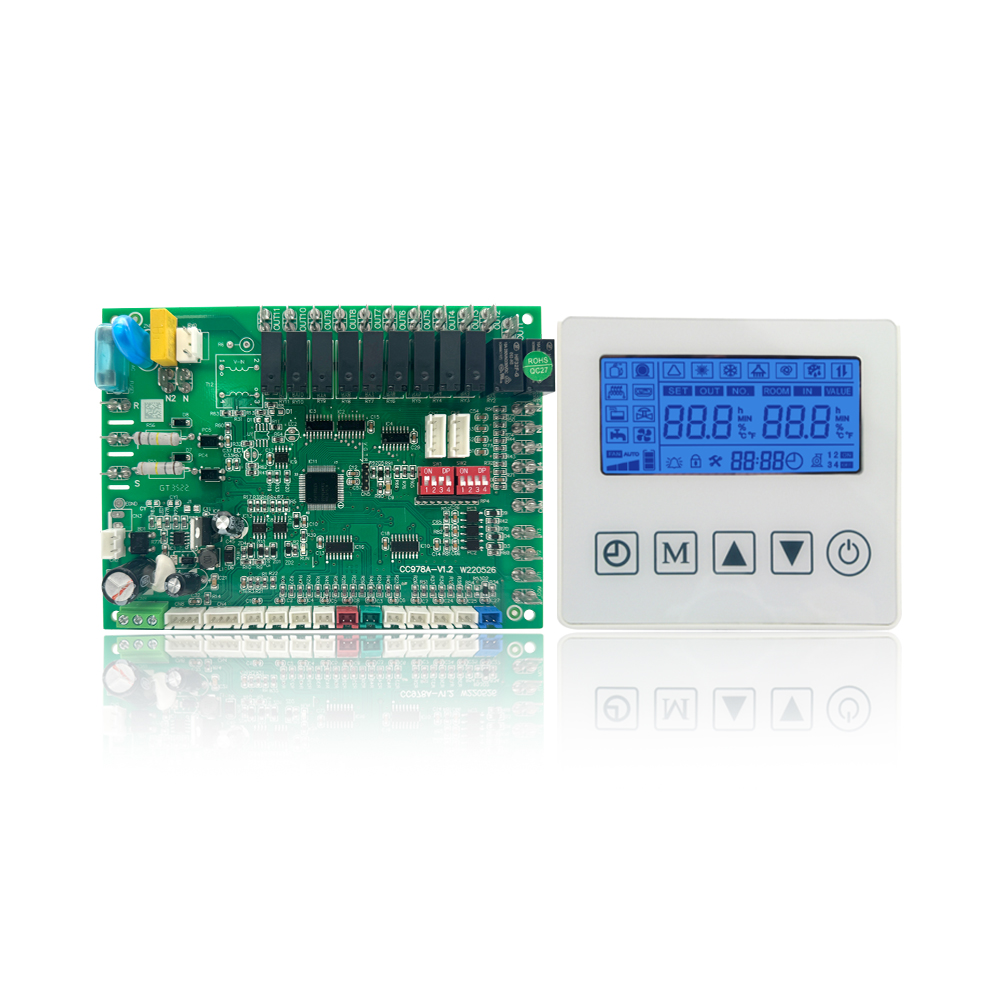

Smart Chiller Control Board On/Off EVI Heat Pump Controller for Air-Cooled Chillers & Heat Pumps
Solucoes personalizadasChiller Controllers
Advanced control board for chillers and heat pumps. Features EVI technology for low-temp stability, heating/cooling/heat recovery modes, and Wi-Fi/Modbus/OTA support. Compatible with LCD/TFT interfaces. Ideal for commercial HVAC systems.
Garantia global Suporte tecnico especializado
Especificacoes
Control TypeOn/Off (Fixed Speed)
Power supply380 or 220±10%(VAC)
Re-range10～55 ℃
Temperature control Accuracy±1 Celsius
ModeCooling, Heating
OutputCompressor, Fan motor, 4-way valve, Cycle water pump, Electronic heater
Simulation sensorInlet water temperature sensor, Climate temperature sensor, Coil temperature sensor, Outlet water temperature sensor, Water tank temperature sensor, Outlet temperature sensor, Evaporator tank temperature sensor, Return water tempeature sensor, Suction temperature sensor, Discharge temperature sensor
Dry contact input signalLow pressure switch, High pressure switch, Water flow switch, ···etc, Emergency switch
Mounting size161×119×25mm
Product listConnection wires (1), Display (1), Main board(1), Temp.sensors(10), Transfomer(1)
Other featuresOne compressor control, Data memory when power is off, With EEV function, 24 hour cycle Timing ON/OFF function, With WIFI function, With overload protection, Modbus and OTA supported, Heating, cooling, heating&cooling and hot water only are optional
